Fortinet FCSS_SDW_AR-7.6 Exam Syllabus Topics:
| Section | Objectives |
|---|---|
| Topic 1: SD-WAN Architecture and Design | - Fortinet SD-WAN architecture concepts
|
| Topic 2: FortiOS 7.6 SD-WAN Configuration | - Performance SLA configuration
|
| Topic 3: Security Integration | - Security services in SD-WAN
|
| Topic 4: Routing and Traffic Management | - Traffic shaping and prioritization
|
| Topic 5: Monitoring and Troubleshooting | - Diagnostics tools
|
Frequently Asked Questions About Fortinet FCSS - SD-WAN 7.6 Architect
The package includes 96 practice questions for the FCSS_SDW_AR-7.6 exam, all verified and arranged in a well-balanced mix of difficulty to support progressive study.
- Routing and Traffic Management ()
- Monitoring and Troubleshooting ()
- SD-WAN Architecture and Design ()
Let the topic weights guide how you split your study hours.
The Fortinet FCSS - SD-WAN 7.6 Architect questions are spread across a well-proportioned range of difficulty, from fundamentals to challenging items. That distribution lets you build confidence session by session, and by the time the real test approaches, you have already faced everything it can reasonably throw at you.
Recommended: FCSS Network Security or equivalent Fortinet NSE/Fortinet Certified Associate knowledge; practical experience with FortiGate and SD-WAN is strongly advised
The FCSS_SDW_AR-7.6 exam contains 60-70 (typical range) questions within 120 minutes minutes. Rehearsing under the same limit on the Real4Prep simulator builds calm, practiced pacing.
Fortinet SD-WAN Training Courses: Visit official page
FortiOS SD-WAN Documentation: Visit official page
Fortinet Training & Certification Portal: register for FCSS_SDW_AR-7.6
Pearson VUE Fortinet Exams: register for FCSS_SDW_AR-7.6
To pass FCSS_SDW_AR-7.6 you need Approximately 70% (scaled score may apply), and the official exam fee is USD 200-400 (varies by region). Fixing both numbers early keeps your practice target concrete.
Our service comes down to three commitments. First, the staff works around the clock online so customer demands about Fortinet FCSS - SD-WAN 7.6 Architect are met the moment they arise. Second, the team is strictly discreet: customer personal information has never been leaked, and your privacy remains protected. Third, our experts watch the renewal of the question bank, and once a change is found, the updated material goes straight to your mailbox.
Fortinet FCSS - SD-WAN 7.6 Architect Sample Questions:

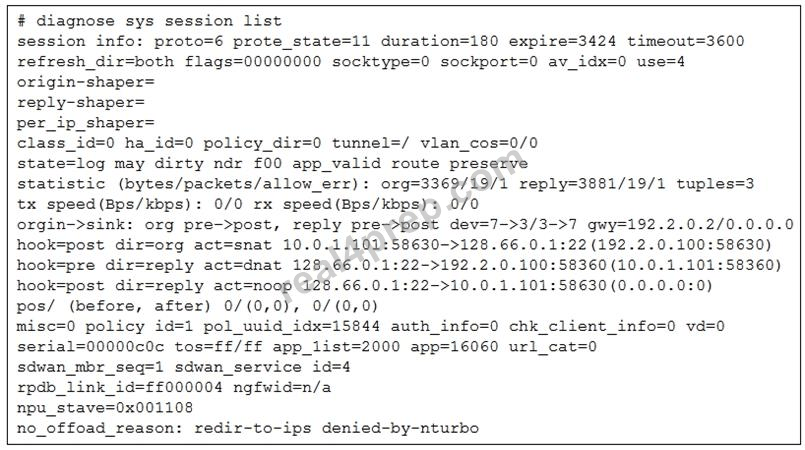

Refer to the exhibit.
The administrator configured the SD-WAN rule ID 4 with two members (port1 and port2) and strategy lowest cost (SLA).
What are the two characteristics of the session shown in the exhibit? (Choose two.)
- A. FortiGate will never re-evaluate this session.
- B. FortiGate steered this flow according to an SD-WAN rule 4.
- C. FortiGate steered this flow according to the application detected and the outgoing interface is port3.
- D. FortiGate will re-evaluate this session if the outgoing interface goes down.
Correct Answer: B,D 🗳️
Explanation: Only visible for Real4Prep members. You can sign-up / login (it's free).
What are three key routing principles of SD-WAN? (Choose three.)
- A. SD-WAN rules are skipped if the best route to the destination is not an SD-WAN member.
- B. Policy routes have precedence over SD-WAN rules.
- C. SD-WAN members are skipped if they do not have a valid route to the destination.
- D. Directly connected routes have precedence over SD-WAN rules.
- E. SD-WAN rules are skipped if the best route to the destination is a static route
Correct Answer: A,B,C 🗳️
Explanation: Only visible for Real4Prep members. You can sign-up / login (it's free).

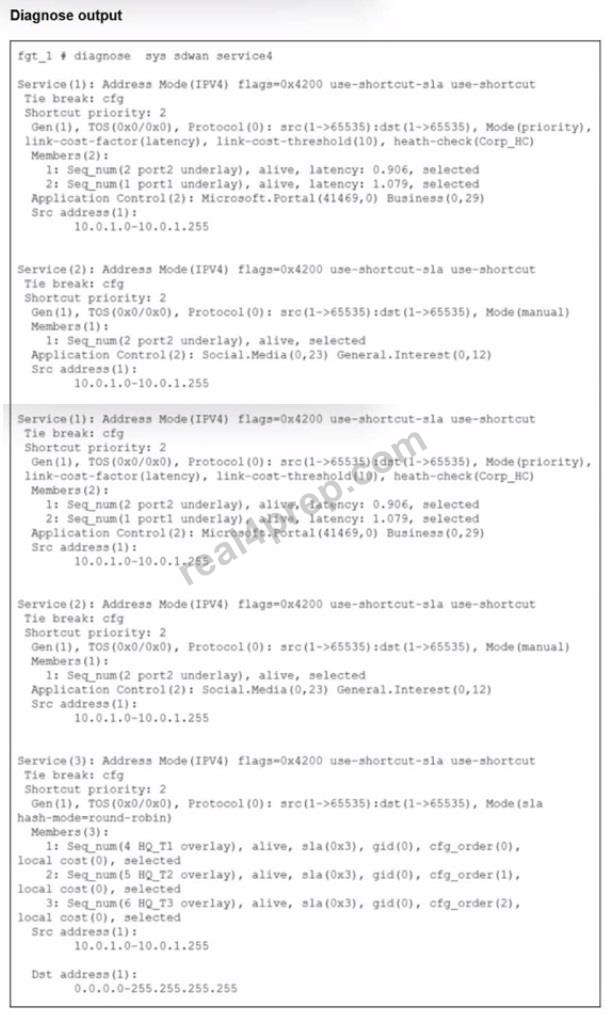

Refer to the exhibit.
The exhibit shows output of the command diagnose sys adwan aervice4 collected on a FortiGate device.
The administrator wants to know through which interface FortiGate will steer traffic from local users on subnet 10.0.1.0/255.255.255.192 and with a destination of the social media application Facebook.
Based on the exhibits, which two statements are correct? (Choose two.)
- A. FortiGate steers traffic for social media applications according to the service rule 2 and steers traffic through port2.
- B. There is no service defined for the Facebook application, so FortiGate appliesservice rule 3 and directs the traffic to headquarters.
- C. When FortiGate cannot recognize the application of the flow, it steers the traffic through the preferred member of rule 3, HQ_T1.
- D. When FortiGate cannot recognize the application of the flow, it load balances the traffic through the tunnels HQ_T1. HQ_T2. HQ_T3.
Correct Answer: A,D 🗳️
Explanation: Only visible for Real4Prep members. You can sign-up / login (it's free).

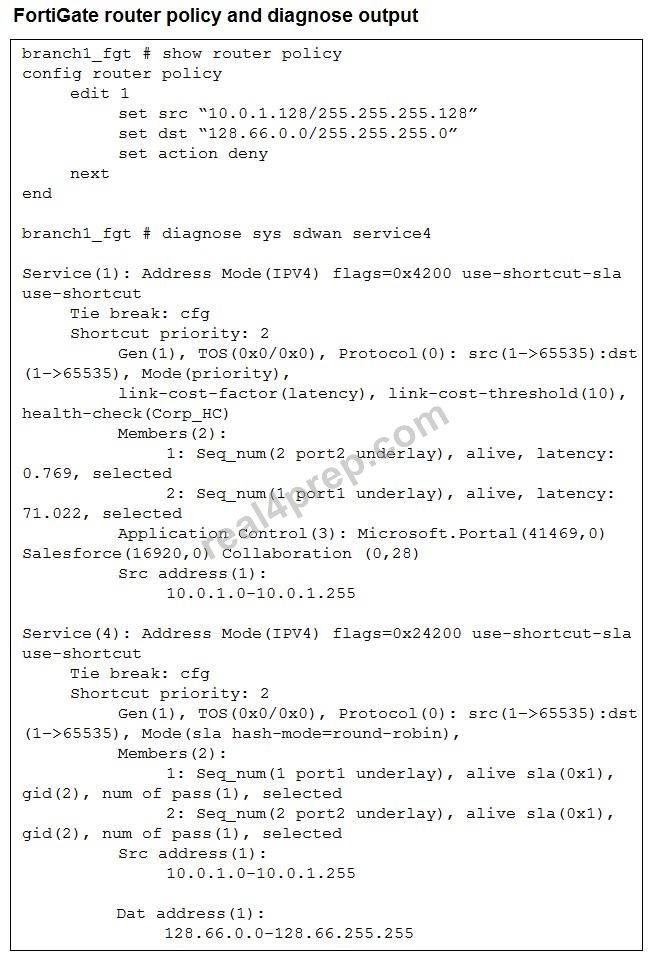

Refer to the exhibit.
How does FortiGate handle the traffic with the source IP 10.0.1.130 and the destination IP 128.66.0 125?
- A. FortiGate drops the traffic flow.
- B. FortiGate routes the traffic flow according to the forwarding information base (FIB).
- C. FortiGate load balances the traffic flow through port7 and port8.
- D. FortiGate steers the traffic flow through port7.
Correct Answer: C 🗳️
Explanation: Only visible for Real4Prep members. You can sign-up / login (it's free).

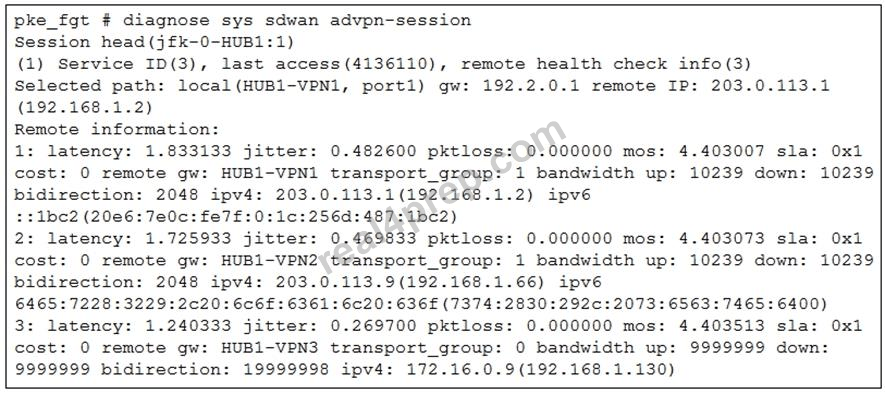

Refer to the exhibit that shows a diagnose output on FortiGate.
Based on the output shown in the exhibit, what can you say about the device role and how it handles health checks?
- A. The device is a spoke. It receives health-check measures for the tunnels of another spoke.
- B. The device is a spoke. It provides embedded health-check measures for each tunnel to the hub.
- C. The device is a hub. It receives health-check measures for the tunnels of a spoke.
- D. The device is a hub. It receives embedded health-check measures for each tunnel from the spoke.
Correct Answer: B 🗳️
Explanation: Only visible for Real4Prep members. You can sign-up / login (it's free).
Viewing page 1 out of 20 pages.
Viewing questions 1-5 out of 96 questions.
